Pulpo / grapa Dragon Machinery QDBG01 nuevo

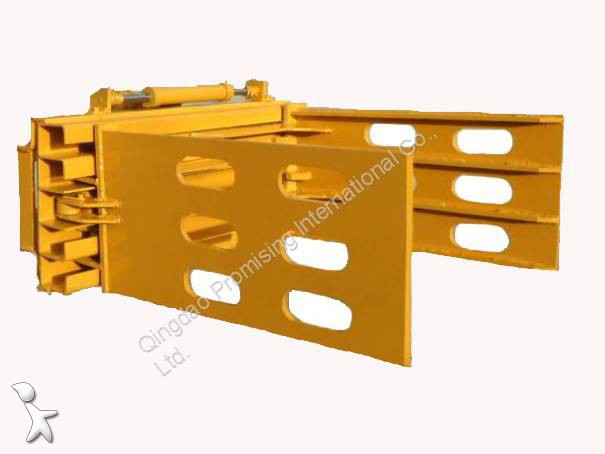

Bale Grapple / Bale Grab / Bale Clamps/Loader Mounted Bale Grab

Functions & Applications
Bale grapple/bale grab or bale clamps are designed to efficiently and safely handle various types of baled products, such as cotton bale, wool bale, synthetics bale, pulp bale, textile bale, clothes bale, corrugated board bale, waste paper bale, rag bale, hay bale, metal bale and other industrial scraps bales etc. and are widely used in papermaking, textile, chemical fiber, waste paper recycling, and port, etc. industries for handling and stacking materials without pallet. Especially in the cotton belt, they are the first choice for loading/unloading of cotton bales.
Features
The composite structure of this series of bale grab, bale grapple and bale clamps is simple but with high strength, and the dead weight of bale clamps is light, providing long life with minimal maintenance requirements. Additionally, the inside of the two arms are reinforced with ribs to increase the coefficient of friction, thus it allows for a solid grip while preventing the clamp from damaging shrink-wrapped bales and prevent the goods from falling off.
We know the success of your business depends on working quickly and efficiently. That’s why we build attachments with quality, reliability and features that help you get more from your equipment. When you choose one of our attachments, you’re investing in reduced downtime, higher productivity, and more work accomplished. And because we offer attachments for everything from snow removal to landscaping, you can count on Promising Machinery for all your attachments.
Our Bale Clamps, Bale Grapple, and Bale Grab comes fully assembled and with hoses and fittings.
Parameters:
1. Overall Dimensions (L x W x H): 1210 x 1500 x 630mm / 47.6” x 59.1” x 24.8”
2. Arm Length: 1180mm / 46.5”
3. Arm Height: 450mm / 17.7”
4. Frame Length: 1500mm / 59.1”
5. Frame Height: 630mm / 24.8”
6. Max. Opening between Two Arms: 2000mm / 78.7”
7. Min. Opening between Two Arms: 750mm / 29.5”
8. Total Weight: 400kg / 880lbs
9. Horizontally Moving Distance: 200mm / 7.9”
Options
1. Customized frame sizes
2. Customized opening ranges
3. Customized arm sizes
4. Customized arm inside surface ribbing.
We have bale clamps of various specifications that can meet your different capacity needs. Any capacity, arm size, frame size, color and design are available upon request.
